| Qauv | SG-IR808-3K |
| Yam Ntxim Saib Ntxim Ua | ≥3000m |
| Hom | Fiber Coupling EEL (Edge Emitting Laser) |
| Lub wavelength | 808 ± 10nm |
| Lub zog nkag | <60 W |
| Tso Tawm Lub Teeb Zog | ≥18W |
| Laser Beam Lub kaum ntse ntse | Lub kaum sab xis 0.3 °, Qhov nrug deb> 3000m, Beam Spot Diameter ＜φ16m |
| Nyob ze lub kaum sab xis 50 °, Qhov Ncauj Tau Zoo> 10m | |
| Lub sijhawm pib | 12s ib |
| Tswj hom | UART_TTL, RS-485, manual |
| Kev sib txuas lus Interface | RS-485, TTL232, Manual Control |
| Kev sib txuas lus raws tu qauv | Pelco-D (9600bps) |
| Ua hauj lwm hom | Txuas ntxiv |
| Kev Pabcuam Lub Neej | > 20000H |
| Lub zog nkag | DC24V ± 10%, 2.2A ± 0.3A |
| Kev ua haujlwm kub | -35 ° C ~ + 55 ° C |
| Cia Kub | -40 ° C ~ + 85 ° C |

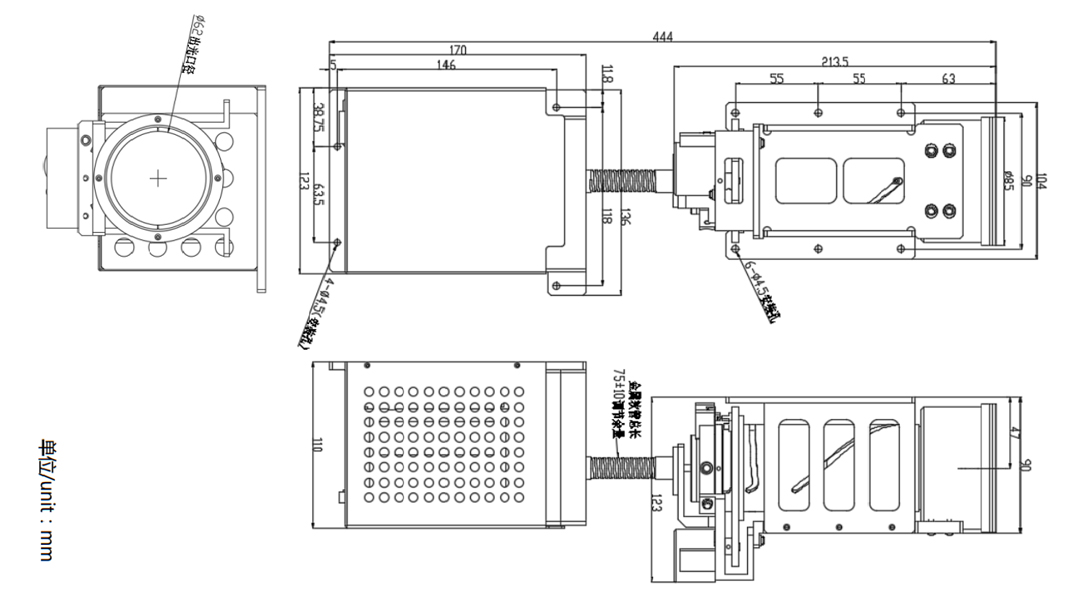

| Dimension | 444mmx136mmx123mm |
| Qhov hnyav | 3.7kg ib |
