12μm 640 × 512 USB (CVBS / Hom - C / Mipi Txoj Kev Xaiv) Compact Loj Ntsuas Hluav Taws Xob Kub

Tus Qauv Qauv

SG - DTM06U (C, M) 2 - x

SG - DTM06U (C, M) 2 - TX

SG - DTM03U (C, M) 2 - x

SG - DTM03U (C, M) 2 - TX

SG - DTM02U (c) 2 - x

SG - DTM02U (c) 2 - TX

Thermal module

Cov Duab Sensor

UNCOnted Vox Microbolometer

Pixel luv

12μm

Kev teb wortandand

8μm rau 14μm

Max. Teeb meem

640 × 512

384 × 228

256 × 192

Tus ncej (FPS)

50

25

50

25

50

25

Lens (focal ntev)

9.1 / 13/19 / 25mm

9.1 / 13 hli

4/7 / 10mm

F tus naj npawb

F1.0 / F1.0 / F1.1 / F1.2

F1.0

F1.0

Teb ntawm kev pom (h × v)

45.9 ° × 359 ° ° / 32.9 °-26.6 ° /

22.6 ° × 18.2 ° / 17.3 ° × 13.8 °

28.7 ° × 21.7 ° / 20.1 ° × 15.1 °

46.8 ° × 34.1 ° × / 24.6 ° × 18.5 ° × 12.9 ° × 12.8 °

Temp ntsuas

N / a

Ev

N / a

Ev

N / a

Ev

Kev ntsuas kub

Qhov ntsuas kub ntau

Lt hom: - 20 ° C ~ + 150 ° C; HT Hom: 0 ° C ~ + 550 ° C

Kev Ntsuas Yuam Kev

Max (± 2 ° C, ± 2%); Kev Ua Haujlwm Temp: - 20 ° C ~ + 50 ° C

Cov Duab Duab

Hloov kho cov duab

Ci ntsa iab, sib piv, ntse

Nthuav dav kev txhim kho

Ev

Tau

Pib / Tuav

Suab nrov txo

2D / 3D

Ntxeev

Ev

Daim iav

Ev

Pseudo - xim

18 Palettes ntawm xim hloov tau

Credhahair

Zaub / ploj / nkaum

Duab Ua

Nuc kho, cov suab nrov digital lim, DDE

Daim duab

Video Tso Tawm Lawm

UVC / BT.656 / MIPI / LVDS / CVBS

UVC / CVBS

Kev nthuav dav

USB / Mipi / CVBs / Hom - C

USB / CVBs / Hom - C

Kev Sib Txuas Lus

Uart serial chaw nres nkoj

Nais phoo

Hwjchim

DC 4.5 ~ 5.5V; Cvbs: DC 4.5-20v

Kev siv fais fab

I≤0.7w@252222

I≤0.7w@252222

≤0.55w@2522222

Tsev hauj lwm kub

- 40 ° C ~ 70 ° C

Cia kub

- 40 ° C ~ 80 ° C

Ua Haujlwm Av Av

≤95% Rh (tsis - condensing)

Ceeb

6.06G Random, 3 - axis, sine yoj kev co

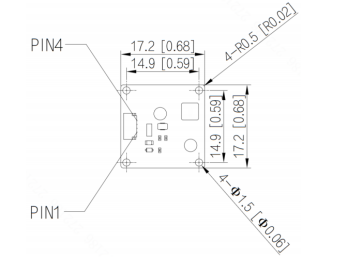

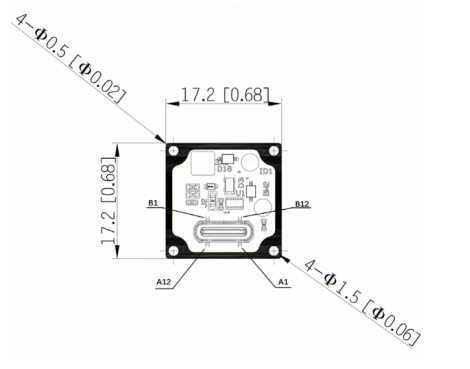

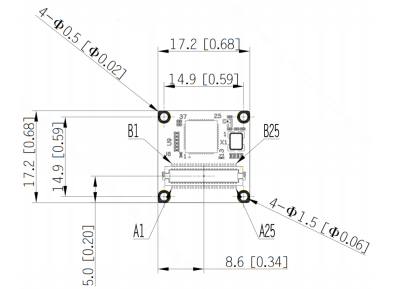

Qho loj dav

17.3mm * 17.3mm * 10.8mm (yam uas tsis muaj lub ntsej muag raj tw tus tw phaj)

Qho hnyav

5g (tsis muaj lens spacer nplhaib tw phaj)
