1280x1024 THERMAL + PHOOJ YWG --MP 90X 90 XEV OPECT ZOOM BI - SPECTRUM HNIAV NTSWG LOAD HEEV PCISTE NETWORK PTZ Koob Yees Duab
|
Tus qauv |
SG - PTZ2090Nio-12T30120 |
SG - PTZ2090Nio- 6t30120 |
||||
|
Thermal |
||||||
|
Sensor |
Cov Duab Sensor |
UNCOnted Vox Microbolometer |
UNCOnted Vox Microbolometer |
|||
|
Teeb meem |
1280 × 1024 |
640 × 512 |
||||
|
Pixel loj |
12μm |
12μm |
||||
|
Spectral ntau yam |
8 ~ 14μm |
8 ~ 14μm |
||||
|
Netd |
≤50MK @ 25 ° C, F # 1.0 |
≤40MK @ 25 ° C, F # 1.0 |
||||
|
Daim iab |
Focal ntev |
30 ~ 120mm Motorized Lens |
30 ~ 120mm Motorized Lens |
|||
|
Kho Qhov Muag |
4x |
4x |
||||
|
Digital Zoom |
4x |
8x |
||||
|
Lub tsev txwv |
F1.0 ~ F1.4 |
F1.0 ~ F1.4 |
||||
|
Kev fov |
28.72 ° × 23.15 ° ~ 7.32 ° × 5.86 ° |
14.59 ° × 11.69 ° ~ 3. 3.67 ° × 2.93 ° |
||||
|
Daim duab |
Kev nyuaj |
H.265 / H.264 / H.264B / H.264H / MJPEG |
||||
|
Ntawv thaij |
Jpeg |
|||||
|
Pseudo xim |
Kev Txhawb Nqa: Dawb Kub, Dub Kub, Hlau Liab, Zaj sawv 1, Fulgake, Zaj Tshos 2, Fusion, Amber, Arctic, Tint |
|||||
|
Dej |
Kwj Maum: 25/1fps @ 1280 × 1024, 25FPS @ 704 × 576, 30FPS @ 704 × 480 SUB - KUB: 25FPS @ 704 × 576, 30FPS @ 704 × 4.80, 25FPS @ 352 × 288, 25FPS @ 352 × 240 |
|||||
|
Lub network |
Network Qaum Ua Si |
Ipv4, IPv, https, UDP, UDP, RTP, NTP, ITP, ICMP, SNTP, QOS, 802.1x, Bonjour |
||||
|
Kev sib tshuam |
Onvif, http API, SDK, GB28181 |
|||||
|
Max. Kev sib txua |
20 |
|||||
|
Kev txawj ntse |
Txheej xwm General |
Tsab ntawv tsa suab, Tamper, SD daim npav, network |
||||
|
IVS FUNCTIONS |
Tripwire, Hla lub laj kab laj, tso tseg cov khoom, kev tawm tsam, pawg neeg kwv yees, ploj qhov khoom, them tas los tau paub. |
|||||
|
Nrhiav Kom Tau Hluav Taws |
Ev |
|||||
|
Cov peev xwm cia |
Micro sd / sdhc / sdxc daim npav (txog 1tb) ntug cia, FTP, NAS |
|||||
|
Rooj cavle |
||||||
|
Sensor |
Cov Duab Sensor |
1/8 1.8 "Sony Starvis 2 Txhim Kho Scan CMOS |
||||
|
Zoo Pixels |
Kwv yees li. 8.40 megapixel |
|||||
|
Daim iab |
Focal ntev |
6 hli ~ 540 hli, 90x kho qhov muag |
||||
|
Lub tsev txwv |
F1.4 ~ f4.87 |
|||||
|
Teb ntawm saib |
H: 65.24 ° ~ 0.81 ° ~ 0.81 °, V: 39.60 ° ~ 0.46 ° ~ 0.46 ° ~ 5.94 ° ~ 0.94 ° |
|||||
|
Kaw kev deb |
1m ~ 10m (dav ~ tele) |
|||||
|
Zoom Ceev |
<10s (dav ~ tele) |
|||||
|
Dori nrug (Tib neeg) |
Pom |
Xam pom |
Nco |
Txheeb xyuas |
||
|
10,800m |
4,286m |
2,160m |
1,080m |
|||
|
Daim duab |
Kev nyuaj |
H.265 / H.264B / H.264M / H.264H / MJPEG |
||||
|
Streaming Muaj Peev Xwm |
3 ntws |
|||||
|
Teeb meem |
Dej loj: 50 / 60fps @ 1920 × 1080; 50 / 60FPS @ 1280 × 720 SUB - KUB1: 50 / 60FPS @ 704 × 576; 50 / 60FPS @ 640 × 4.80 SUB - KUB2: 25 / 30FPS @ 1920 × 1080; 25/3FPS @ 1280 × 720 |
|||||
|
Tus lej me ntsis |
32Kbps ~ 16mbps |
|||||
|
Lub suab |
AAC / mp2l2 |
|||||
|
Lub network |
Network Qaum Ua Si |
Ipv4, IPv, https, UDP, UDP, RTP, NTP, ITP, ICMP, SNTP, QOS, 802.1x, Bonjour |
||||
|
API |
Onvif, http API, sdk |
|||||
|
Web browser |
Piv txwv li, ntug, Firefox, Chrome |
|||||
|
Tus siv |
Txog 20 cov neeg siv, 2 Qib: Tus Thawj Coj, Neeg Siv |
|||||
|
Chaw ntim khoom |
Micro sd / sdhc / sdxc daim npav (txog 1tb) ntug cia, FTP, NAS |
|||||
|
Multicast |
Ev |
|||||
|
Txheej xwm General |
Tsab ntawv tsa suab, Tamper, SD daim npav, network |
|||||
|
Ivs |
Tripwire, Hla lub laj kab laj, tso tseg cov khoom, kev tawm tsam, pawg neeg kwv yees, ploj qhov khoom, them tas los tau paub. |
|||||
|
Lub hom phiaj txawv |
Tib Neeg / Tsheb |
|||||
|
S / n piv txwv |
≥5SDB |
|||||
|
Yam tsawg kawg nkaus teeb |
Xim: 0.001lux / F1.4; B / W: 0.0001LUX / F1.4 |
|||||
|
Suab nrov txo |
2d / 3D / AI suab nrov |
|||||
|
Lub Hom Phiaj |
Pib, Aperture Prece Priatority, Ncig Saib Xyuas Qhov Tseem Ceeb, Tshaj Tawm Ua Ntej, Phau Ntawv |
|||||
|
Raug Them Nyiaj |
Ev |
|||||
|
Shutter Ceev |
1/1 ~ 1 / 30000s |
|||||
|
Txhos |
Ev |
|||||
|
Hlc |
Ev |
|||||
|
Wdr |
Ev |
|||||
|
Dawb Tshuav |
Nws pib, phau ntawv, sab nraud, sab nraum zoov, nyob sab nraum zoov, ntawm lub teeb, sodium, lub teeb txoj kev, ntuj, ib lub laub |
|||||
|
Hnub / Hmo |
Hluav Taws Xob, ICR (Pib / Los Ntawm Txhais Tes) |
|||||
|
Tsom hom |
Nws pib, phau ntawv, Semi pib, ceev pib, ceev semi pib, ib lub laub af |
|||||
|
Hauv Defog |
Ev |
|||||
|
Kho qhov muag |
Txhawb nqa, 750NM ~ 1100nm channel yog kho qhov muag |
|||||
|
Kub Kub Kub Kub Txo |
Ev |
|||||
|
Ntxeev |
Ev |
|||||
|
EIS |
Ev |
|||||
|
Digital Zoom |
16X |
|||||
|
Lauj kaub qaij |
||||||
|
Lub cav |
Harmonic Tsav |
|||||
|
Lub Hwj Chim ntawm / Tawm Tus Kheej - Kuaj |
Tau |
|||||
|
Preset |
255 |
|||||
|
Kev sib txuas lus hom |
RS485 |
|||||
|
Pan / Tilt ntau |
Lauj kaub: 360 ° Tig; Qaij: - 70 ° ~ + 20 ° |
|||||
|
YIAS CEEV |
Configurable, lauj kaub: 0.01 ° ~ 40 ° / s |
|||||
|
Qaij ceev |
Teeb tsa, qaij: 0.01 ° ~ 20 ° / s |
|||||
|
Precision Ntawm Ua Ntej - Muab Tso Tawm |
± 0.01 ° |
|||||
|
Luam luam |
Ev |
|||||
|
Dai |
Txhawb (rau pom lub koob yees duab) |
|||||
|
Kev sib tshuam |
||||||
|
Fais fab interface |
Ev |
|||||
|
Ethernet |
1 × rj45 (10base - T / 100Base - Download) |
|||||
|
Audio I / O |
1/1 (rau pom lub koob yees duab nkaus xwb) |
|||||
|
Tswb kuv / O |
1/1 |
|||||
|
RS485 |
1 |
|||||
|
Nais phoo |
||||||
|
Dej |
IP66, TVs 6000v Laim Tiv Thaiv Tiv Thaiv, Kev Tiv Thaiv Kev Loj |
|||||
|
Hwjchim |
DC 48V Lub Hwj Chim Lub Zog |
|||||
|
Kev siv fais fab |
80W |
|||||
|
Kev vaum |
0 ~ 90% tsis - condensing |
|||||
|
Tsev hauj lwm kub |
- 40 ° C ~ 70 ° C / 20% rau 90% RH |
|||||
|

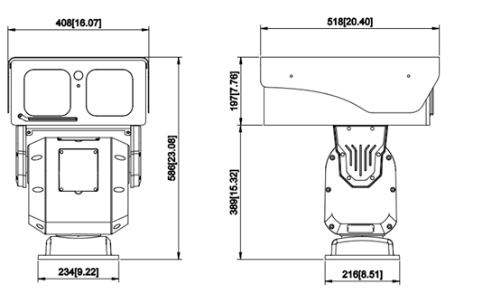

Qhov loj me (L * W * H) |
Kwv yees li. 518mm * 408mm * 586mm |
|||||
|
Qho hnyav |
52kg |
|||||
