1280x1024 thermal network lub koob yees duab module nrog 25 ~ 225mm (30 ~ 150mm) lub cev muaj zog

Tus qauv

Sg - Tcm12N2 -M25225

Sg - Tcm12N2 -M30150

Sensor

Cov Duab Sensor

UNCOnted Vox Microbolometer

Teeb meem

1280 × 1024

Tus ncej

50HZ

Pixel Twitch

12μm

Spectral ntau yam

8 ~ 14μm

Netd

E≤35MK @ 25 ° C, F # 1.0

Daim iab

Daim plhaub

DLC

Focal ntev

25 ~ 225 hli

30 ~ 150mm

Lens Hom

Lub muaj zog

Lub muaj zog

Kho Qhov Muag

9x

5x

Digital Zoom

8x

8x

F tus nqi

F1.0 ~ F1.5

F1.0 ~ F1.2

Kev fov

34.15 ° × 27.61 ° ~ 3.91 ° ​​× 3.13 °

28.72 ° × 23.15 ° ~ 23 5.86 ° × 4.69 °

Daim duab

Kev nyuaj

H.265 / H.264 / H.264H / H.264B / MJPEG

Audio S nyem

AAC / mp2l2

Ntawv thaij

Jpeg

Teeb meem

Cov kwj deg tseem ceeb: 50FPS @× (1280 × 1024, 1280 × 720, 704 × 576, 704 × 4.80)
SUB - KUB1 / 2: 50FPS @ (704 × 576, 704 × 4.52 × 285, 352 × 240)

Tus lej me ntsis

4KBPS ~ 40Mbps

Lub network

Network Qaum Ua Si

Ipv4, IPv, https, UDP, UDP, RTP, NTP, ITP, ICMP, SNTP, QOS, 802.1x, Bonjour

API

Onvif, http API, SDK, GB28181

Kev Nyab Xeeb Kev Ruaj Ntseg

Cov neeg siv kev lees paub, IP / Mac liming, HTTPS encryption, IEEE 802.1x Kev Tswj Xyuas Kev Siv

Web browser

Piv txwv li, ntug, Firefox, Chrome

Tus siv

Txog 20 cov neeg siv, 2 Qib: Tus Thawj Coj, Neeg Siv

Chaw ntim khoom

Micro sd / sdhc / sdxc daim npav (txog 1tb) ntug cia, FTP, NAS

Multicast

Ev

Kev txawj ntse

Txoj kev tiv thaiv puag ncig

Tripwire, hla kev laj kab laj kab laj kab, kev nkag

Kev Ntsuam Xyuas Tus Cwj Pwm

Cov khoom raug tso tseg, khoom raug tshem tawm, tsiv ceev ceev, neeg siv nyiaj txiag, neeg siv nyiaj txiag, kom paub txog chaw nres tsheb

Txheej xwm

Kev txav suab, kev hloov pauv ntawm cov teeb meem, kev kaw suab kaw, network disconnected, IP kev tsis sib haum xeeb, kev tsis raug cai, cia anomaly

Nrhiav Kom Tau Hluav Taws

Ev

Kev sib tshuam

Ethernet

4PIN Ethernet chaw nres nkoj, 10M / 100m / 100m self - adaption

Lub tswb hauv / Tawm

1/1

Audio hauv / Tawm

1/1

Tswj interface

1x ttl 3.3v (Visca raws tu qauv),

1x Rs485 (Pelco Raws Cai) (TTL 3.3V Yeem)

Video Tso Tawm Lawm

Lub network

Pseudo xim

Dawb kub, dub kub, fusion, hlau liab, thiab lwm yam 20 txoj kev xaiv

Tsom hom

Pib / Los Ntawm Txhais Tes / Ib Lo Push Af

FFC hom

Pib / Tuav

Duab teeb duab

Ci ci, sib piv, nruj me ntsis, thiab lub suab nrov ib ntus

EIS

Ev

Osd

Ev

Ntxeev

Ev

Daim iav

Ev

Kev pab fais fab

DC 12V, 1a

Raug power

3.8W

Peak Kev Tiv Thaiv

7.5w

7.3W

Kev khiav hauj lwm

- 30 ° C ~ + + 60 ° C / 20% rau 80% RH

Kev Cia

- 40 ° C ~ + 70 ° C / 20% rau 95% RH

Qeb 1 Lens tiv thaiv qib

Ms67

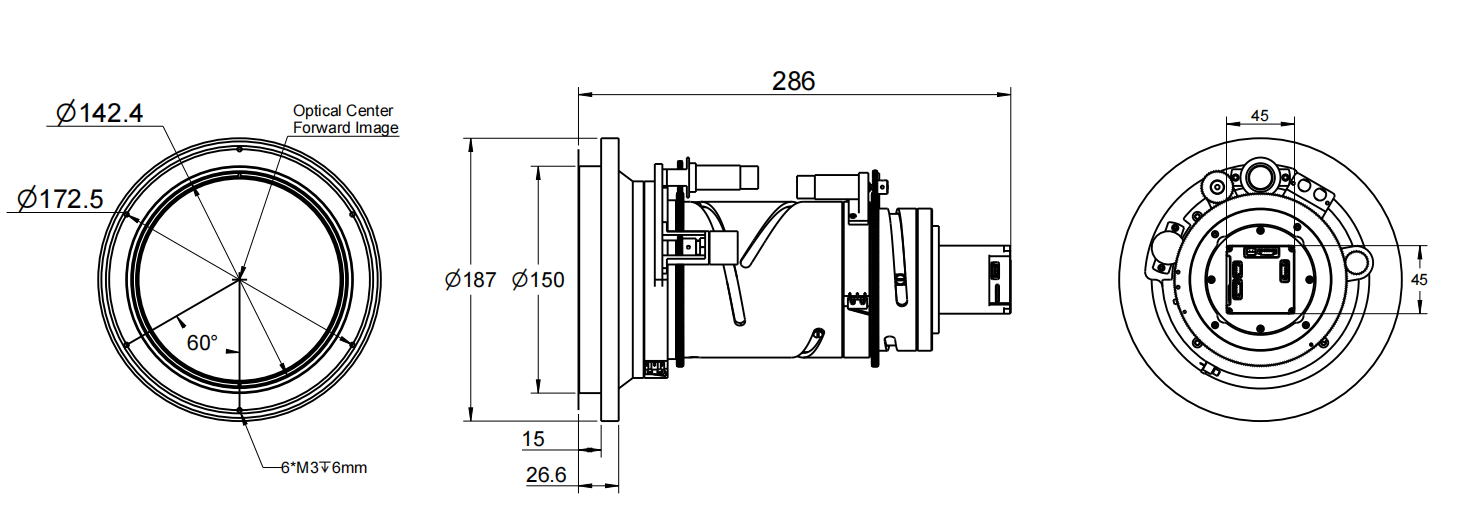

Qhov loj me (L * W * H)

Φ195 * 321mm

Φ187 * 286 (hli)

Qho hnyav

Kwv yees li. 5kg

Kwv yees li. 4.6kg

Daim iab

Dyam ntxiv

Rkev paub zoo

Tus kws kos npey

Lub tsheb

Tus neeg

Tso tseg

Lub tsheb

Tus neeg

Tso tseg

Lub tsheb

Tus neeg

Tso tseg

30mm

3833m (12575ft)

1250M (4101ft)

217M

(712ft)

958m (3143ft)

313m (10277)

54M

(177ft)

479M (1572ft)

156m (512)

27M

(89ft)

150 hli

Xyoo 19167M (62884ft)

6250M (20505FT)

1083m

(3553ft)

4792M (15722FT)

1563m (5128ft)

271m

(899ft)

2396M (7861FT)

781M (2,562ft)

135m

(443ft)

225 hli

28750m (943244ft)

9375M (30758FT)

1625m

(5333114ft)

7188m (23583ft)

2344m (7690ft)

406M

(1332ft)

3594m (11791ft)

1172M (3845FT)

203m

(666ft)
