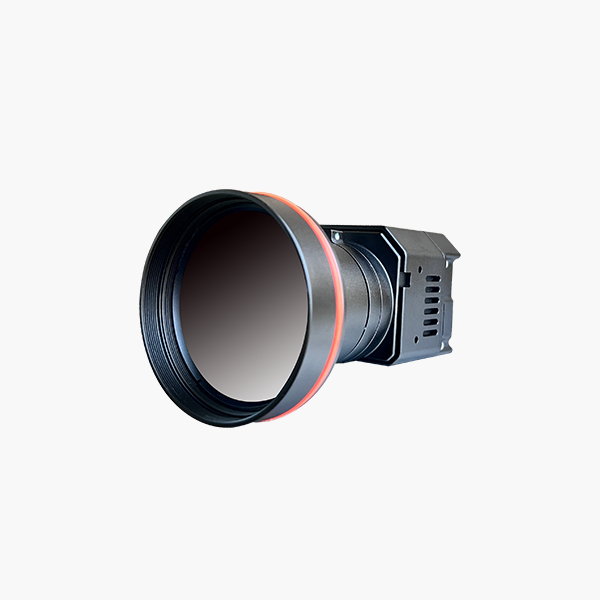

1280x1024 thermal network lub koob yees duab module nrog 55 hli (35 hli) lub lens tsau
|
Tus qauv |
Sg - Tcm12N2 -55 |
Sg - Tcm12N2 -35 |
|
|
Sensor |
Cov Duab Sensor |
UNCOnted Vox Microbolometer |
|
|
Teeb meem |
1280 × 1024 |
||
|
Tus ncej |
50HZ |
||
|
Pixel Twitch |
12μm |
||
|
Spectral ntau yam |
8 ~ 14μm |
||
|
Netd |
E≤35MK @ 25 ° C, F # 1.0 |
||
|
Daim iab |
Daim plhaub |
DLC |
|
|
Focal ntev |
55 hli |
35 hli |
|
|
Tsom |
Siv tes |
Siv tes |
|
|
Digital Zoom |
8x |
8x |
|
|
F tus nqi |
F1.0 |
F1.0 |
|
|
Kev fov |
15.90 ° × 12.75 ° |
24.75 ° × 19.91 ° |
|
|
Daim duab |
Kev nyuaj |
H.265 / H.264 / H.264H / H.264B / MJPEG |
|
|
Audio S nyem |
AAC / mp2l2 |
||
|
Ntawv thaij |
Jpeg |
||
|
Teeb meem |
Cov kwj deg tseem ceeb: 50FPS @× (1280 × 1024, 1280 × 720, 704 × 576, 704 × 4.80) |
||
|
Tus lej me ntsis |
4KBPS ~ 40Mbps |
||
|
Lub network |
Network Qaum Ua Si |
Ipv4, IPv, https, UDP, UDP, RTP, NTP, ITP, ICMP, SNTP, QOS, 802.1x, Bonjour |
|
|
API |
Onvif, http API, SDK, GB28181 |
||
|
Kev Nyab Xeeb Kev Ruaj Ntseg |
Cov neeg siv kev lees paub, IP / Mac liming, HTTPS encryption, IEEE 802.1x Kev Tswj Xyuas Kev Siv |
||
|
Web browser |
Piv txwv li, ntug, Firefox, Chrome |
||
|
Tus siv |
Txog 20 cov neeg siv, 2 Qib: Tus Thawj Coj, Neeg Siv |
||
|
Chaw ntim khoom |
Micro sd / sdhc / sdxc daim npav (txog 1tb) ntug cia, FTP, NAS |
||
|
Multicast |
Ev |
||
|
Kev txawj ntse |
Txoj kev tiv thaiv puag ncig |
Tripwire, hla kev laj kab laj kab laj kab, kev nkag |
|
|
Kev Ntsuam Xyuas Tus Cwj Pwm |
Cov khoom raug tso tseg, khoom raug tshem tawm, tsiv ceev ceev, neeg siv nyiaj txiag, neeg siv nyiaj txiag, kom paub txog chaw nres tsheb |
||
|
Txheej xwm |
Kev txav suab, kev hloov pauv ntawm cov teeb meem, kev kaw suab kaw, network disconnected, IP kev tsis sib haum xeeb, kev tsis raug cai, cia anomaly |
||
|
Nrhiav Kom Tau Hluav Taws |
Ev |
||
|
Kev sib tshuam |
Ethernet |
4PIN Ethernet chaw nres nkoj, 10M / 100m / 100m self - adaption |
|
|
Lub tswb hauv / Tawm |
1/1 |
||
|
Audio hauv / Tawm |
1/1 |
||
|
Tswj interface |
1x ttl 3.3v (Visca raws tu qauv), 1x Rs485 (Pelco Raws Cai) (TTL 3.3V Yeem) |
||
|
Video Tso Tawm Lawm |
Lub network |
||
|
Pseudo xim |
Dawb kub, dub kub, fusion, hlau liab, thiab lwm yam 20 txoj kev xaiv |
||
|
FFC hom |
Pib / Tuav |
||
|
Duab teeb duab |
Ci ci, sib piv, nruj me ntsis, thiab lub suab nrov ib ntus |
||
|
EIS |
Ev |
||
|
Osd |
Ev |
||
|
Ntxeev |
Ev |
||
|
Daim iav |
Ev |
||
|
Kev pab fais fab |
DC 12V, 1a |
||
|
Kev siv fais fab |
≤3.8W |
||
|
Kev khiav hauj lwm |
- 30 ° C ~ + + 60 ° C / 20% rau 80% RH |
||
|
Kev Cia |
- 40 ° C ~ + 70 ° C / 20% rau 95% RH |
||
|
Qeb 1 Lens tiv thaiv qib |
Ms67 |
||
|

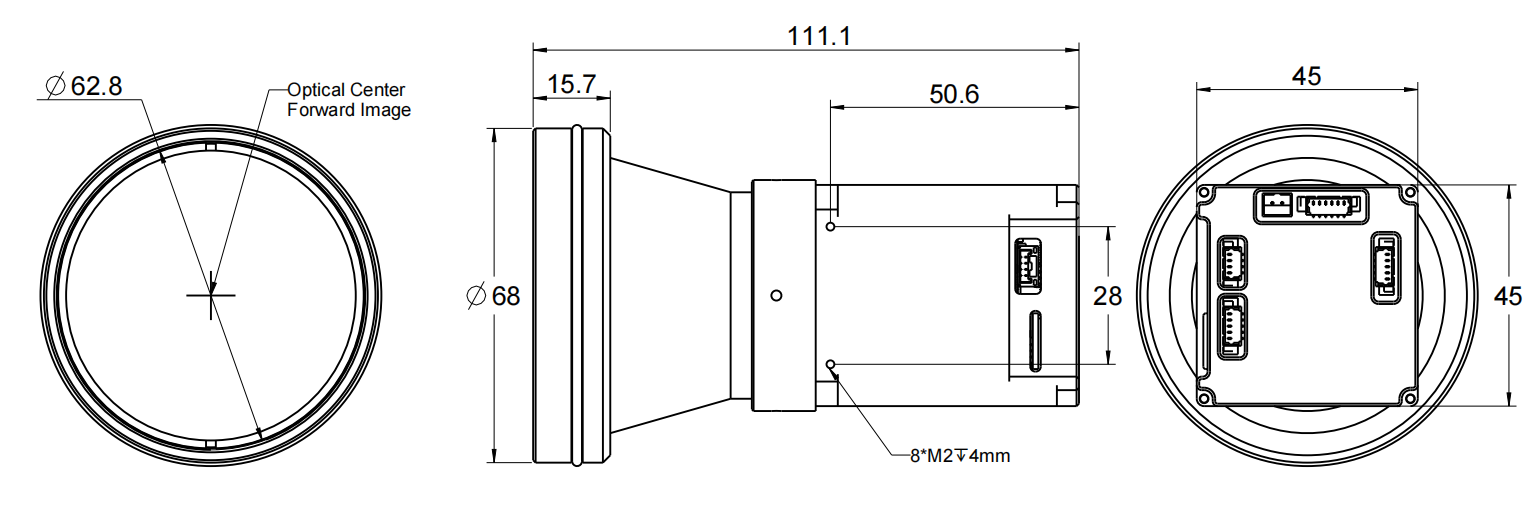

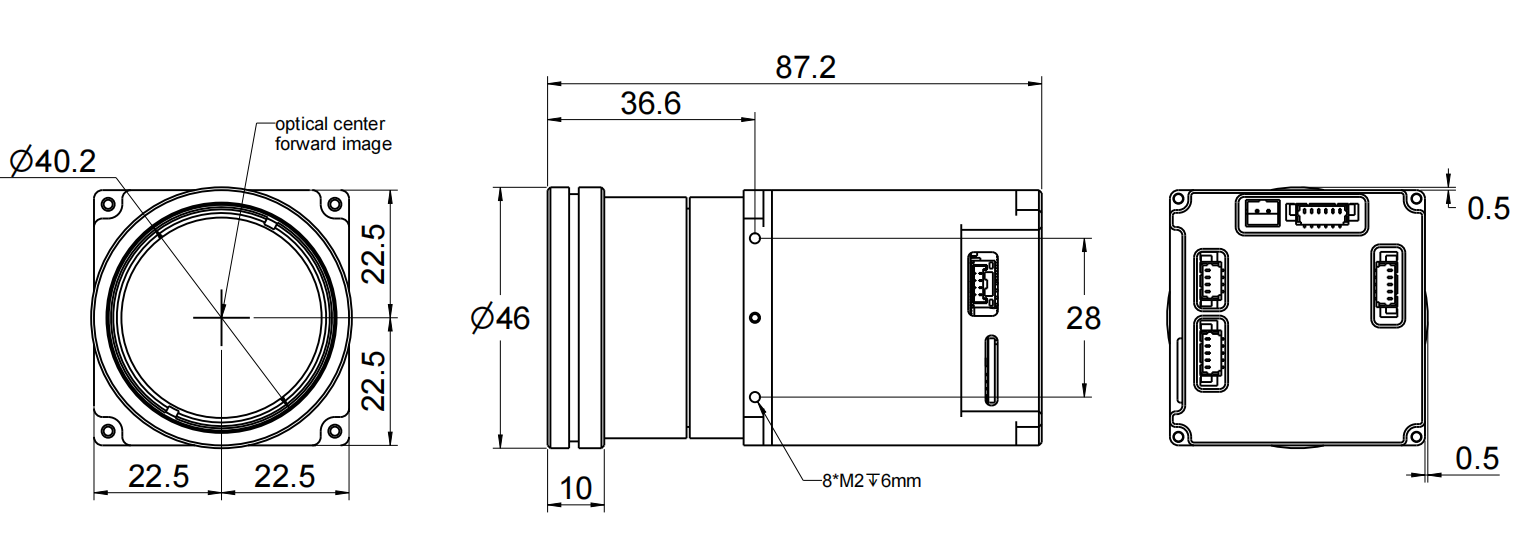

Qhov loj me (L * W * H) |
Φ68 * 111.1 hli |
87.2 * 46 * 46mm |
|
|
Qho hnyav |
Kwv yees li. 430g |
Kwv yees li. Ang |
|
DRI DIT
Lub Hom Phiaj: Tib neeg qhov loj yog 1.8m × 0.5m (tseem ceeb heev yog 0.75m), tsheb loj yog 1.4m _4m (loj heev yog 2.3m); Hluav taws kub yog 0.13m × 0.13m (qhov loj me yog 0.13m).
Cov hom phiaj nrhiav tau, kev lees paub thiab cov kev sib tw sib txawv yog suav tau raws li Johnson cov qauv.
Qhov kev pom zoo rau kev nrhiav kom paub, kev lees paub thiab kev txheeb xyuas yog raws li hauv qab no:
|
Daim iab |
Dyam ntxiv |
Rkev paub zoo |
Tus kws kos npey |
||||||
|
Lub tsheb |
Tus neeg |
Tso tseg |
Lub tsheb |
Tus neeg |
Tso tseg |
Lub tsheb |
Tus neeg |
Tso tseg |
|
|
35 hli |
4472m (14672ft) |
1458m (4783ft) |
253M (830ft) |
1118m (3668ft) |
365m (1198ft) |
63M (207ft) |
559m (1834ft) |
182m (597ft) |
32M (105ft) |
|
55 hli |
7028m (23058ft) |
2292M (7520ft) |
397m (1302ft) |
1757m (5764ft) |
573m (1880ft) |
99m (325ft) |
878m (2281ft) |
286M (938FT) |
50M (164ft) |
