Tus qauv

Sg - zcm2020a

Sensor

Cov Duab Sensor

1/8 "Sony Imx307 CMOS

Zoo Pixels

Kwv yees li. 2.13 megapixel

Daim iab

Focal ntev

4.8mm ~ 96mm, 20X kho qhov muag

Lub tsev txwv

F1.6 ~ F3.5

Teb ntawm saib

H: 61.8 ° ~ 3.6 °

Kaw kev deb

100 ~ 1500 hli (dav ~ tele)

Zoom Ceev

Kwv yees li. 3s (Optical dav ~ tele)

Daim duab

Lub hau kev

HD - TVI, HDCVI, AHD, CVBs 4 hauv 1 (OSD Menu Hloov)

Khoom uas tsim tau lawm

IVP - P Tsob Nroj Ntau

Teeb meem

TVI / CVI / AHD: 25/3FPS @ 2MP (1920 × 1080)

CBVs: 700tvl

OSD Cov Ntawv Qhia

On / Tawm (11 * 20 tus cim)

Yam tsawg kawg nkaus teeb

Xim: 0.01lux / F1.6; B / W: 0.001lux / F1.6

Hnub / Hmo

ICR (auto, xim, xim dub, sab nraud)

S / n piv txwv

≥44DB

2D cov suab nrov txo

Ev

Kev txo cov suab 3D

Txhawb (High / Nruab Nrab / Tsawg)

Tsom hom

Nws pib, phau ntawv, semi pib,

Lub Hom Phiaj

Nws pib, phau ntawv

Shutter Ceev

Nws pib, 1/50 (1/60) ~ 1 / 100,000s

Qeeb shutter

X2

Dawb Tshuav

Auto, Nyob sab hauv tsev, sab nraum zoov, pib khiav, ib thawb

Txhos

On / Tawm

Nws pib txais

Nws pib, phau ntawv

Tus Masking Ntiag Tug

On / tawm, max. 8 thaj chaw

Zaj piav

Hloov tau

Txawv txav

Hloov tau

Defl

Ev

Daim iav

On / tawm, tig, ntxeev

Duab khov

On / Tawm

Kev sib tshuam

6pin, 2pin 1.25mm lub davhlau ya nyob twg, nrog tus Tsov tus tw board

Sib Txuas Lus Sib Tham

Sony Visca, Pelco D, UTC (9.6KBPS 10Bit)

Kev khiav hauj lwm

- 30 ° C ~ + + 60 ° C / 20% rau 80% RH

Kev Cia

- 40 ° C ~ + 70 ° C / 20% rau 95% RH

Kev pab fais fab

DC 12V / 90MACH ± 6MA (DC Feem Ntau: 9 ~ 16v)

Kev siv fais fab

Max. 4W

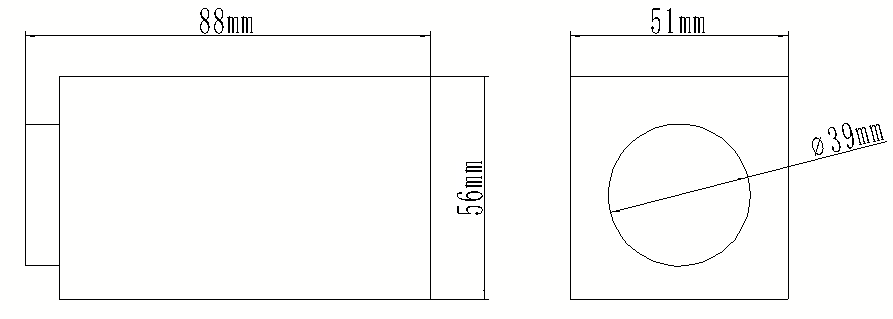

Qhov loj me (L * W * H)

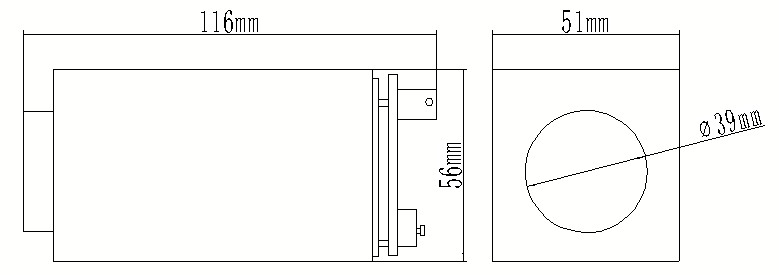

88mm * 51mm * 56mm (116mm * 51mm * 56mm nrog tus tw board)

Qho hnyav

213g (231g nrog tus tw board)
