2MP 65x Ai ISP raws li ultra ntev deb zoom goons lub network thiab mipi dual
|
Tus qauv |
Sg - zcm2065nmi - o |
||||
|
Sensor |
Cov Duab Sensor |
1/8 1.8 "Sony Starvis zuj zus scan cmos |
|||
|
Zoo Pixels |
Kwv yees li. 4.17 Megapixel |
||||
|
Daim iab |
Focal ntev |
20mm ~ 1300mm, 65x kho qhov muag |
|||
|
Lub tsev txwv |
F2.92 ~ F11.4 |
||||
|
Teb ntawm saib |
H: 22.05 ° ~ 0.34 ° ~ 0.34 °, V: 12.51 ° ~ 0.19 ° ~ 0.19 °, D: 25.2 ° ~ 0.39 ° |
||||
|
Kaw kev deb |
1m ~ 50m (dav ~ tele) |
||||
|
Zoom Ceev |
<10S (Optical dav ~ tele) |
||||
|
Dori nrug (Tib neeg) |
Pom |
Xam pom |
Nco |
Txheeb xyuas |
|
|
17,931m |
7,115m |
3,586m |
1,793m |
||
|
Daim duab |
Kev nyuaj |
H.265 / H.264B / H.264M / H.264.H / MJPEG |
|||
|
Streaming Muaj Peev Xwm |
3 ntws |
||||
|
Teeb meem |
Dej loj: 50 / 60fps @ 1920 × 1080; 50 / 60FPS @ 1280 × 720 Sub kwjd1: 50 / 60fps @ 704 × 480; 50 / 60FPS @ 640 × 480; 50 / 60FPS @ 352 × 240 Sub kwjd2: 25/1fps @ 1920 × 1080; 25/1fps @ 1280 × 720; 25/1FPS @ 704 × 576 |
||||
|
Lub suab |
AAC (8 / 16KHz) / MP2L2 (16kHz) |
||||
|
Mipi Daim duab |
50Hz: 50fps @ 2MP (1920 × 1080) 60HZ: 60fps @ 2MP (1920 × 1080) |
||||
|
Lub network |
Network Qaum Ua Si |
Ipv4, IPv, https, UDP, UDP, RTP, NTP, ITP, ICMP, SNTP, QOS, 802.1x, Bonjour |
|||
|
API |
Onvif, http API, SDK, GB28181 |
||||
|
Web browser |
Piv txwv li, ntug, Firefox, Chrome |
||||
|
Tus siv |
Txog 20 cov neeg siv, 2 Qib: Tus Thawj Coj, Neeg Siv |
||||
|
Chaw ntim khoom |
Micro sd / sdhc / sdxc daim npav (txog 1tb) ntug cia, FTP, NAS |
||||
|
Multicast |
Ev |
||||
|
Firmware Evergrade |
Tsuas yog tuaj yeem hloov kho cov firmware ntawm network chaw nres nkoj. |
||||
|
Txheej xwm General |
Tsab ntawv tsa suab, Tamper, SD daim npav, network |
||||
|
Ivs |
Tripwire, Hla lub laj kab laj, tso tseg cov khoom, kev tawm tsam, pawg neeg kwv yees, ploj qhov khoom, them tas los tau paub. |
||||
|
Lub hom phiaj txawv |
Tib Neeg / Tsheb |
||||
|
S / n piv txwv |
≥5SDB |
||||
|
Yam tsawg kawg nkaus teeb |
Xim: 0.05lux / F2.92; B / W: 0.005LUX / F2.92 |
||||
|
Suab nrov txo |
2d / 3D / AI suab nrov |
||||
|
Lub Hom Phiaj |
Pib, Aperture Prece Priatority, Ncig Saib Xyuas Qhov Tseem Ceeb, Tshaj Tawm Ua Ntej, Phau Ntawv |
||||
|
Raug Them Nyiaj |
Ev |
||||
|
Shutter Ceev |
1/1 ~ 1 / 30000s |
||||
|
Txhos |
Ev |
||||
|
Hlc |
Ev |
||||
|
Wdr |
Ev |
||||
|
Dawb Tshuav |
Nws pib, phau ntawv, sab nraud, sab nraum zoov, nyob sab nraum zoov, ntawm lub teeb, sodium, lub teeb txoj kev, ntuj, ib lub laub |
||||
|
Hnub / Hmo |
ICR (Pib / Tuav) |
||||
|
Tsom hom |
Nws pib, phau ntawv, semi pib, ib thawb af |
||||
|
Hauv Defog |
Ev |
||||
|
Kho qhov muag |
Txhawb nqa, 750NM ~ 1100nm channel yog kho qhov muag |
||||
|
Kub Kub Kub Kub Txo |
Ev |
||||
|
Ntxeev |
Ev |
||||
|
EIS |
Ev |
||||
|
Digital Zoom |
16X |
||||
|
Sab nraud tswj |
2x ttl; Tau tshaj Sony Visca thiab Pelco los ntawm kev cai |
||||
|
Kev sib tshuam |
4PIN Ethernet Chaw nres nkoj, 6Pin Fais Fab & Uart chaw nres nkoj, 5Pin audio chaw nres nkoj, 30Pin Mipi |
||||
|
Sib Txuas Lus Sib Tham |
Sony Visca, pelco d / p |
||||
|
Kev khiav hauj lwm |
- 30 ° C ~ + + 60 ° C / 20% rau 80% RH |
||||
|
Kev Cia |
- 40 ° C ~ + 70 ° C / 20% rau 95% RH |
||||
|
Kev pab fais fab |
DC 12V |
||||
|
Kev siv fais fab |
Lub Zog Qub: 5W, Lub Zog Kev Ua Si: 10W |
||||
|

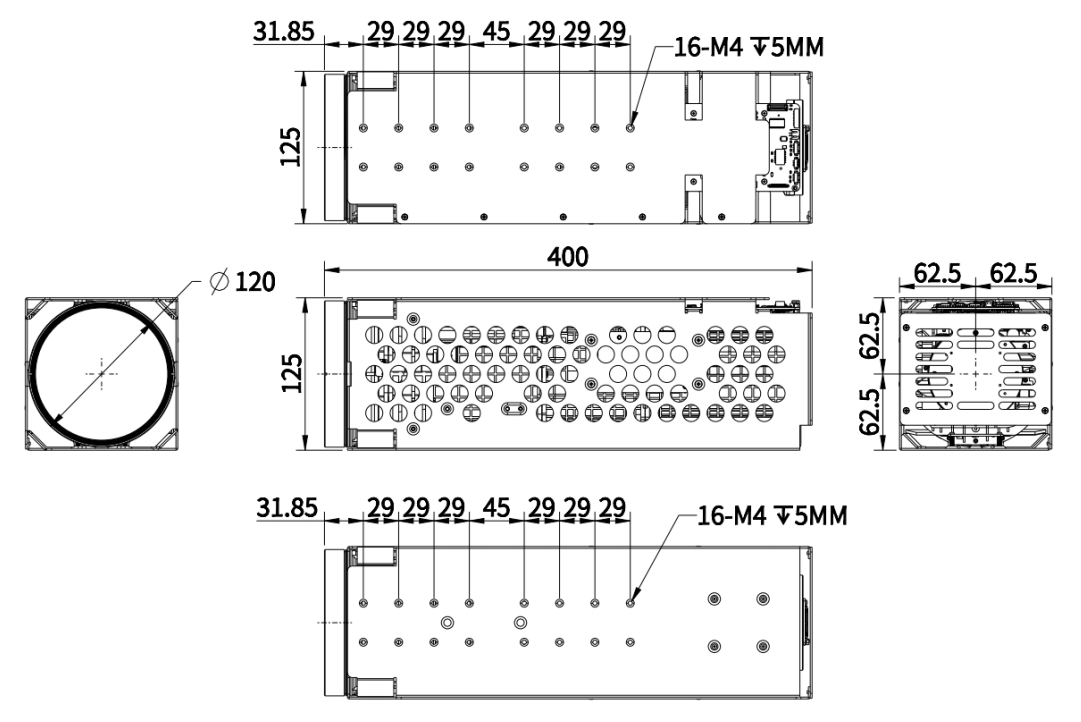

Qhov loj me (L * W * H) |
400 hli * 125mm * 125mm |
||||
|
Qho hnyav |
Kwv yees li. 5kg |
||||
