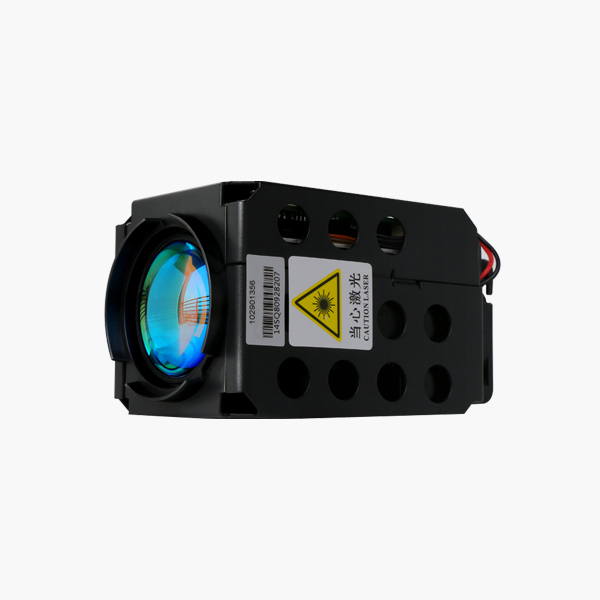

500m nrug 1550nm infrared laser illuminator module
|
Tus qauv |
Sg -IR1550-5M |
|
Qhov deb |
≥500m |
|
Hom |
VCELS |
|
Lub paj |
1550nm ± 15Nm |
|
Cov Khoom Siv Hluav Taws Xob |
≤21W |
|
Laser Chip Fais Fab |
2.2W ± 0.2W |
|
Tso Tawm Lub Zog Zog |
2.0W ± 0.2W |
|
Teeb pom kev zoo |
1 ° ~ 30 ° (Nruam Ntxiv Ua Ntej) |
|
Tej Dav Hlau Ntxaij |
Far sab xis 1.0 °, deb li deb> 500m, nqaj charig <φ8.7m |
|
Zej zog kaum sab xis 30 °, deb nrug> 80m |
|
|
Zoom sijhawm |
≤4s (ze rau deb) |
|
Qib Laser Qeb |
Hoob 1 |
|
Kev sib txuas lus interface |
Rs - 485, TTL232, Kev Tuav Tswj |
|
Sib Txuas Lus Sib Tham |
Pelco - D, 9600BPS vim hais tias (4800bps, 2400bps rau kev xaiv tau) |
|
Ua Haujlwm Hom |
Txuas ntxiv |
|
Kev Pabcuam Lub Neej |
> 30000H |
|
Cov Khoom Siv Hluav Taws Xob |
DC12V ± 10%, 1.5 ± 0.2a |
|
Kev Ntsuas Kub |
- 20 ° C ~ + 55 ° C |
|
Cia kub |
- 20 ° C ~ + 70 ° C |
|

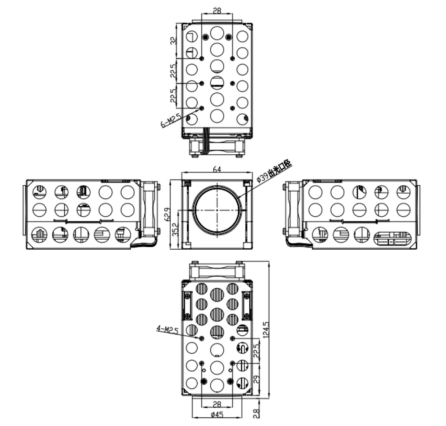

Qho loj dav |
124.5 hli * 64mm * 63 hli |
|
Qho hnyav |
400g |
