640x512 AI ISP Raws Network thiab Mipi Dual OUTP
|
Tus qauv |
SG - SWZ06NMI2-7200 |
|
|
Sensor |
Cov Duab Sensor |
1/4 "Sony Ingaas Thoob Ntiaj Teb Shutter Plhuab Sensor (IMX991) |
|
Zoo Pixels |
Kwv yees li. 0.34MP |
|
|
Pixel loj |
5μm |
|
|
Spectral ntau yam |
400 ~ 1700nm |
|
|
Daim iab |
Lens yoj |
1000 ~ 1700nm |
|
Tus Icr |
Txhawb 2 hom: Dav Band: 1000 ~ 1700nm Nqaim band: 1450 ~ 1700nm |
|
|
Focal ntev |
7.1mm ~ 200mm, 28x kho qhov muag |
|
|
Lens Hom |
Stepper tsav zoom len |
|
|
Lub tsev txwv |
F1.69 ~ F4.84 |
|
|
Teb ntawm saib |
H: 25.40 ° ~ 0.92 °, V: 20.44 ° ~ 0.73 ° ~ 0.73 ° ~ 0.73 ° ~: 31,20 ° ~ 1.17 ° |
|
|
Kaw kev deb |
1m ~ 5m (dav ~ tele) |
|
|
Zoom Ceev |
<4s (dav optical ~ tele) |
|
|
Daim duab |
Kev nyuaj |
H.265 / H.264 / H.264H / H.264.B / MJPEG |
|
Teeb meem |
Lub tseem ceeb tuaj: 50 / 60fps @ 1280 × 1024, 50/2fps @ 704 × 4.80 Cov kwj deg: 50 / 60fps @ 640 × 512, 50 / 60FPS @ 352 × 240 |
|
|
Tus lej me ntsis |
32Kbps ~ 16mbps |
|
|
Lub suab |
AAC / mp2l2 |
|
|
Mipi |
25/2 / 50/2FPS @ 640 × 512 |
|
|
Lub network |
Network Qaum Ua Si |
Ipv4, IPv, https, UDP, UDP, RTP, NTP, ITP, ICMP, SNTP, QOS, 802.1x, Bonjour |
|
API |
Onvif (profile g, profile g, profile t), http API, SDK, GB28181 |
|
|
Tus siv |
Txog 20 cov neeg siv, 2 Qib: Tus Thawj Coj, Neeg Siv |
|
|
Chaw ntim khoom |
MicroDd / sdhc / sdxc daim npav (txog 1tb) ntug cia, FTP, NAS |
|
|
Multicast |
Ev |
|
|
Kev txawj ntse |
Li qub |
Kev kuaj cov suab, kev kaw suab, kev tswj hwm tsis raug cai, cia ib qho kev nkag mus, kev hloov video, teeb meem kev hloov pauv, network |
|
IVS FUNCTIONS |
Tripwire, Hla lub laj kab laj, tso tseg cov khoom, kev tawm tsam, pawg neeg kwv yees, ploj qhov khoom, them tas los tau paub. |
|
|
Firmware Evergrade |
Tsuas yog tuaj yeem hloov kho cov firmware ntawm network chaw nres nkoj |
|
|
Txheej xwm General |
Tsab ntawv tsa suab, Tamper, SD daim npav, network |
|
|
Ivs |
Tripwire, Hla lub laj kab laj, tso tseg cov khoom, kev tawm tsam, pawg neeg kwv yees, ploj qhov khoom, them tas los tau paub. |
|
|
Suab nrov txo |
2D / 3D |
|
|
Lub Hom Phiaj |
Los ntawm phau ntawv, auto, aperture Prece Priatority, Shutter Qhov Tseem Ceeb |
|
|
Raug Them Nyiaj |
Ev |
|
|
Shutter Ceev |
1/3 ~ 1 / 30000s |
|
|
Tsom hom |
Nws pib / phau ntawv / SEMI pib / ib thawb af |
|
|
Hauv Defog |
Ev |
|
|
Kub Kub Kub Kub Txo |
Ev |
|
|
Ntxeev |
Ev |
|
|
EIS |
Ev |
|
|
Digital Zoom |
16X |
|
|
Ethernet |
4PIN Ethernet chaw nres nkoj, 10M / 100m / 100m self - adaption |
|
|
Sab nraud tswj |
Ttl |
|
|
Kev sib tshuam |
4PIN Ethernet Chaw nres nkoj, 6PIN Serial & Fais chaw nres nkoj, 5Pin audio chaw nres nkoj. 30PIn Mipi Chaw Nres Nkoj |
|
|
Sib Txuas Lus Sib Tham |
Sony Visca, pelco d / p |
|
|
Kev khiav hauj lwm |
- 30 ~ + 60 ° C / 20% ~ 80% RH |
|
|
Kev Cia |
- 40 ~ + 70 ° C / 20% ~ 95% RH |
|
|
Kev pab fais fab |
DC 12V |
|
|
Kev Siv Hluav Taws Xob (TBD) |
Lub Zog Qub: 4.5W, Power Power: 5.5W |
|
|

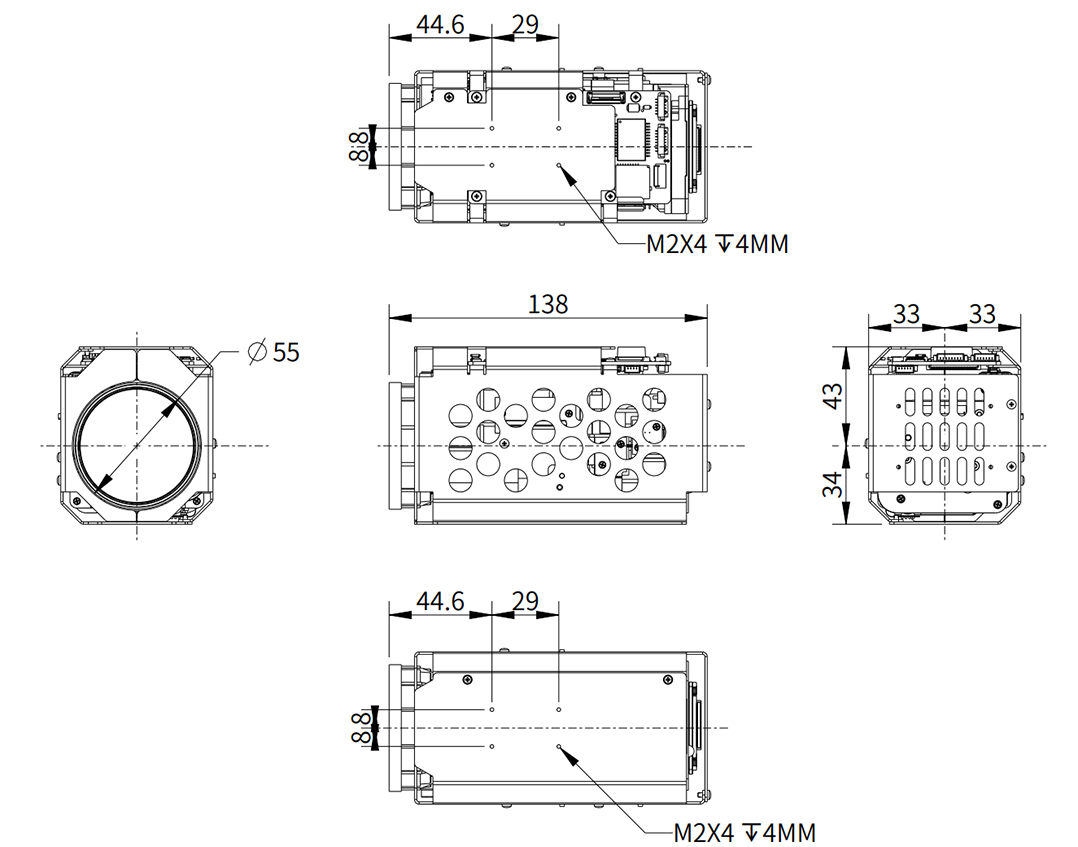

Qhov loj me (L * W * H) |
Kwv yees li. 138mm * 66mm * 77 hli |
|
|
Qho hnyav |
618g |
|
