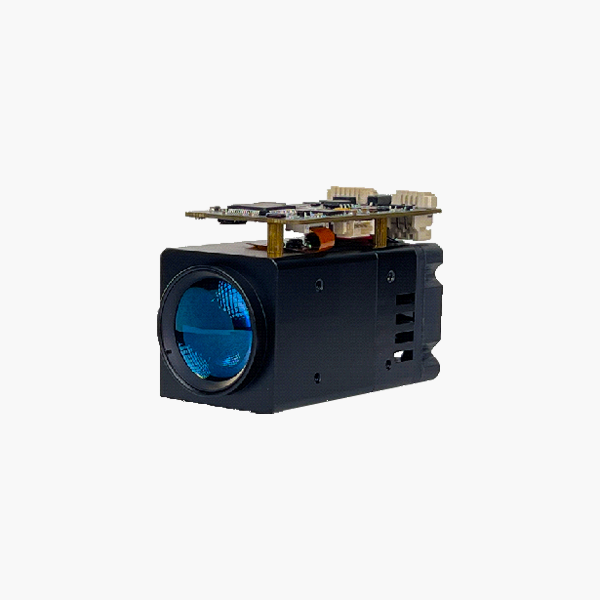

800m nrug 850nm Lite infrared laser illuminator module
|
Tus qauv |
SG - IR850 - 8ml |
|
Qhov deb |
≥800m |
|
Hom |
VCELS |
|
Lub paj |
850 ± 10nm |
|
Kev Kawm Laser Laser |
Hoob 3B |
|
Cov Khoom Siv Hluav Taws Xob |
<20.0w |
|
Laser Chip Fais Fab |
4.4 ± 0.3W |
|
Tso Tawm Lub Zog Zog |
4.0 ± 0.3W |
|
Laser Beam Lub |
Far sab xis 1.8 °, nrug deb npaum li cas> 800m, Beam thaj tsam txoj kab uas hla <φ26m |
|
Ze rau lub kaum sab xis 71 °, deb li cas> 80m |
|
|
Zoom Ceev |
≤ 3s (Far Kaum ~ thawj kaum) |
|
Kev tswj hom |
Uart_ttl, Rs - 485, phau ntawv |
|
Kev sib txuas lus interface |
Rs - 485, TTL232, Kev Tuav Tswj |
|
Sib Txuas Lus Sib Tham |
Pelco - D (9600BPS tsis ua haujlwm, 115200bps, 4800bps, 2400bps rau cov xaiv tau) |
|
Ua Haujlwm Hom |
Txuas ntxiv |
|
Kev Pabcuam Lub Neej |
≥ 50000h |
|
Cov Khoom Siv Hluav Taws Xob |
DC12V ± 10% |
|
Kev ua haujlwm tam sim no |
<1.65a |
|
Kev ntsuas kub |
- 40 ° C ~ + 70 ° C |
|
Cia kub |
- 40 ° C ~ + 80 ° C |
|
Qho loj dav |
66 hli * 35 hli * 47mm |
|
Qho hnyav |
Kwv yees li. 105g |
